Characteristic:

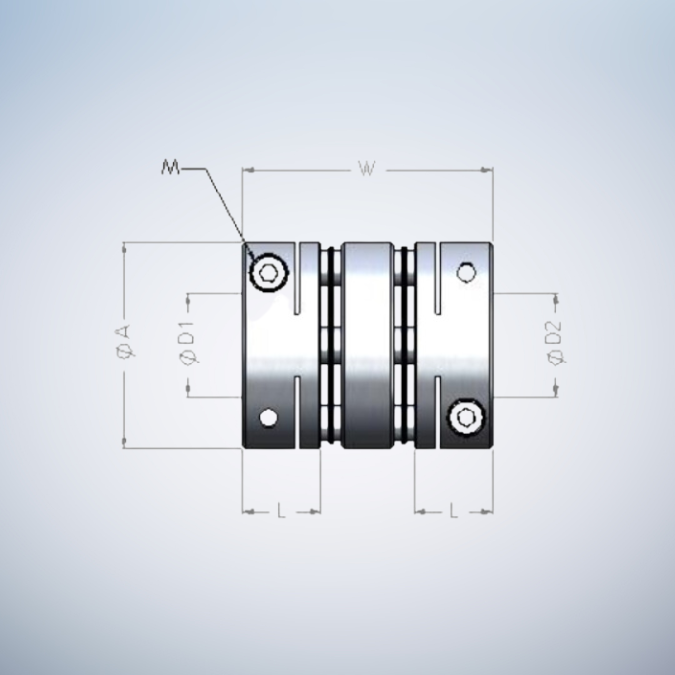

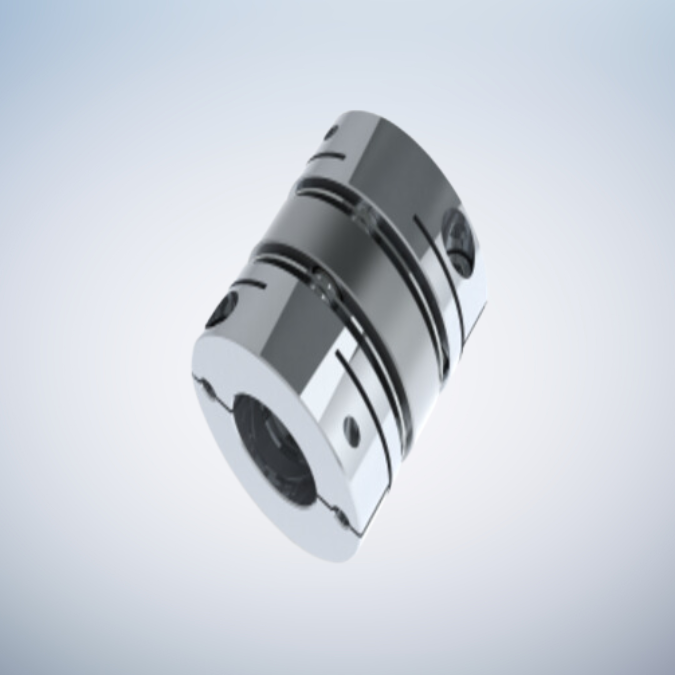

– Reed flexible coupling.
– Double sets of stainless steel reeds can tolerate eccentricity, declination and reverse axial deviation.
– The clockwise and counterclockwise rotation characteristics are exactly the same.
– Suitable for precision positioning transmission of small and medium-sized servo motors.
– Low inertia and no backlash.
– Standardization of products with different hole diameters at both ends.
– Clamp screw type fixation.
– XHCA-C body: aluminum alloy material.
| Product number | Common torque (Nm) |
Maximum torque (Nm) |
Maximum number of revolutions (min -1 ) |
Inertia (kg.㎡) |
Allowable eccentricity (mm) |
Allowable angular deviation (°) |
Allowable axial displacement (mm) |
Mass (g) |
| XHCA-27C | 2.5 | 5.0 | 23000 | 4.5 x 10-6 | 0.2 | 2° | ±0.4 | 39.0 |
| XHCA-35C | 5.0 | 10.0 | 18000 | 1.4×10-5 | 0.25 | 2° | ±0.4 | 75.0 |
| XHCA-40C | 9.0 | 18.0 | 16000 | 3.0×10-5 | 0.3 | 2° | ±0.6 | 125.0 |
| XHCA-45C | 12.0 | 24.0 | 14000 | 4.8×10-5 | 0.3 | 2° | ±0.6 | 155.0 |
| XHCA-50C | 18.0 | 36.0 | 12000 | 9.9×10-5 | 0.3 | 2° | ±0.6 | 257.0 |
| XHCA-57C | 26.0 | 52.0 | 11000 | 16.5 x 10-5 | 0.3 | 2° | ±0.8 | 330.0 |
| XHCA-68C | 62.0 | 124.0 | 10000 | 40.0×10-5 | 0.3 | 2° | ±0.8 | 554.0 |
