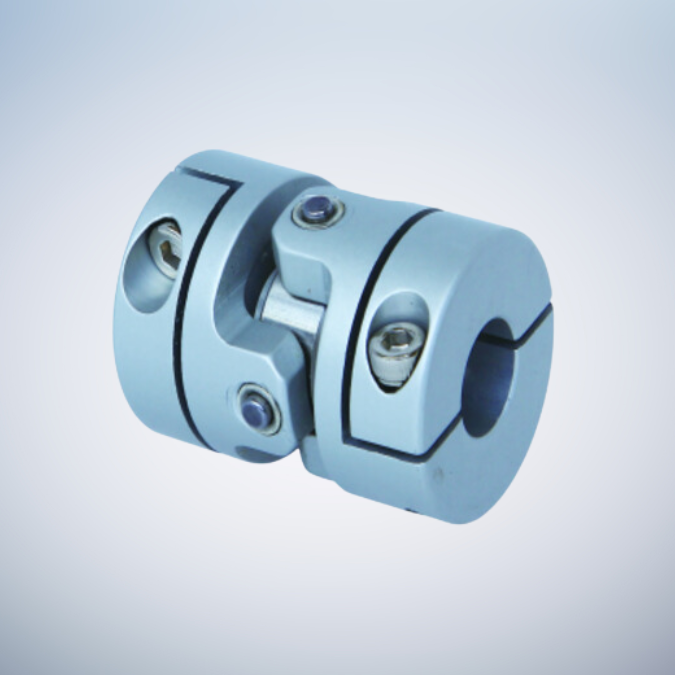

Features:
– Sippage between the bush and pin allows for parallel and angular misalignments.
– Minimized backlash achieved through high precision fit of pin and bush.
– Minimized load on shaft caused by misalignments.
– Identical clockwise and counter-clockwise rotational characteristics.
– Finished products featuring two different end bore diameters available in stock.
– Clamp type.
– MSA-C Body : Aluminum alloy.
| Product No |
Rated Torque (N.m) |
Max. Torque (N.m) |
Max.Rotational Frequency (min-1) |
Moment of lnertia (kg.㎡) |
Error of Eeccentricity (mm) |
Error of Angularity (°) |
Error of Shaft End-Play (mm) |
Mass** (g) |
| MSA-25 | 1.2 | 2.4 | 6100 | 3.4 x 10-6 | 0.5 | 3° | – | 42.0 |
| MSA-32 | 3.0 | 6.0 | 4800 | 1.1 x 10-5 | 0.5 | 3° | – | 83.0 |
| MSA-40 | 6.0 | 12.0 | 3800 | 3.2 x 10-5 | 0.5 | 3° | – | 155.0 |
| MSA-50 | 10.0 | 20.0 | 3100 | 9.9 x 10-5 | 0.5 | 3° | – | 306.0 |
