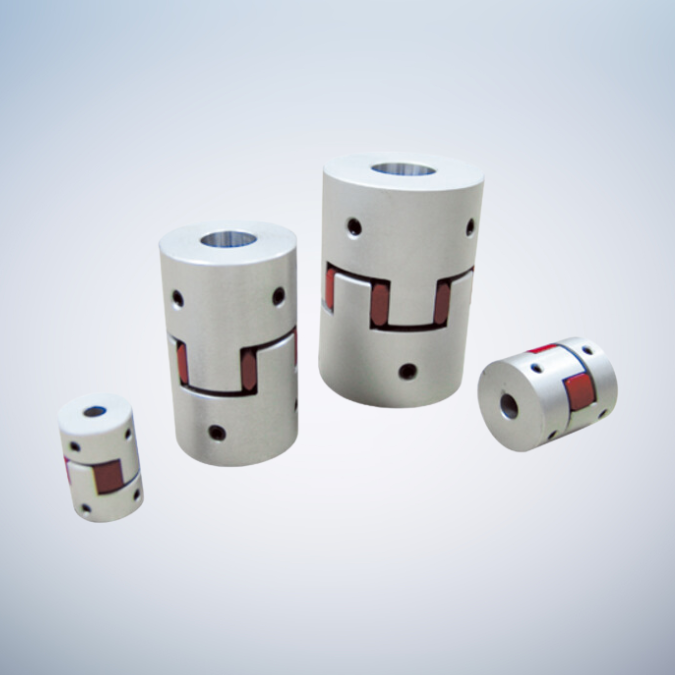

Features:
– High Torque, Vibration Absorption, Press Fitted Sleeve.
– Extremely high torsional stiffness, low inertia and excellent response.
– Vibration absorption angular misalignments and shaft end-play by spring action.
– Excellent electrical insulation.
– Identical clockwise and counter-clockwise rotational characteristics.
– Finished products featuring two different end bore diameters available in stock.
– Setscrew type.
– MTC Body : Aluminum alloy.

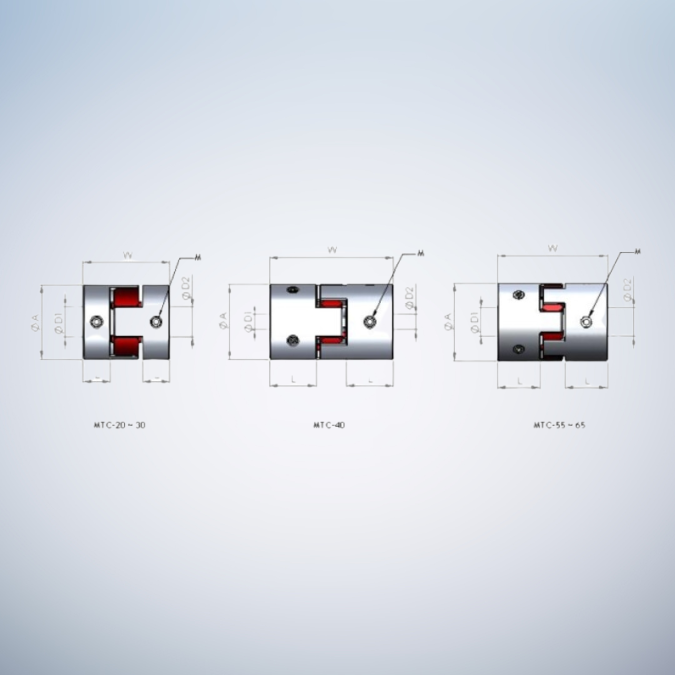

| Product No |
Rated Torque (N.m) |
Max. Torque (N.m) |
Max.Rotational Frequency (min-1) |
Moment of lnertia (kg.㎡) |
Error of Eeccentricity (mm) |
Error of Angularity (°) |
Error of Shaft End-Play (mm) |
Mass** (g) |
| MTC-20-RD | 5.0 | 10.0 | 19000 | 1.0 x 10-6 | 0.10 | 1° | ±0.8 | 18.0 |
| MTC-30-RD | 12.5 | 25.0 | 13000 | 5.9 x 10-6 | 0.10 | 1° | ±1.0 | 46.0 |
| MTC-40-RD | 17.0 | 34.0 | 9600 | 4.0 x 10-5 | 0.10 | 1° | ±1.2 | 150.0 |
| MTC-55-RD | 60.0 | 120.0 | 7000 | 1.7 x 10-4 | 0.10 | 1° | ±1.4 | 350.0 |
| MTC-65-RD | 160.0 | 320.0 | 5900 | 3.9 x 10-4 | 0.10 | 1° | ±1.5 | 570.0 |
