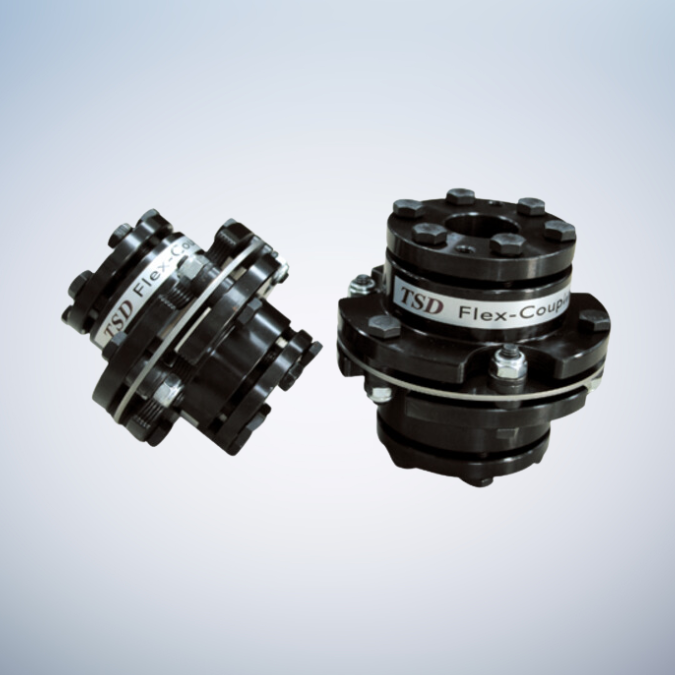

Features:
– All steel flexible couplings.
– High rigidity high torque.
– Low moment of inertia backlash-free.
– Suitable to middling large servo system exact transmission.
– Compensating of axial radial and angular shaft misalignments.
– Long service life maintenance-free.

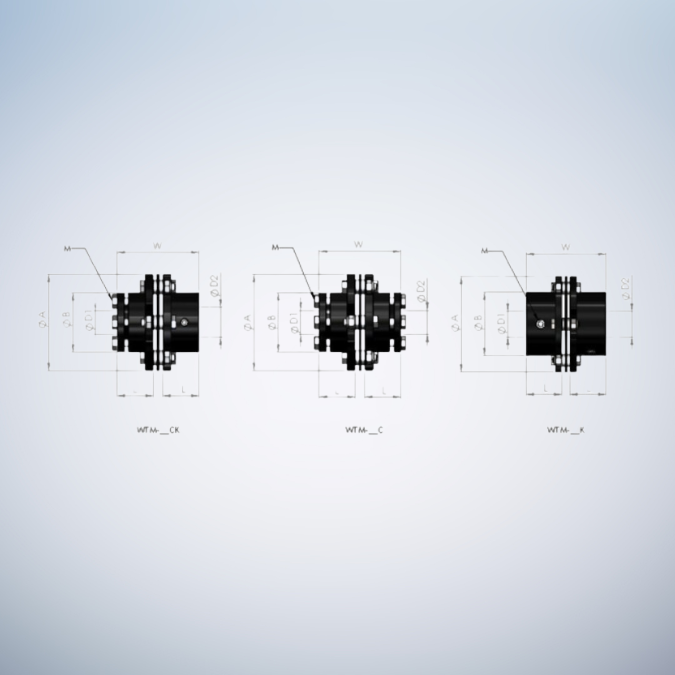

– Clamp type / Setscrew type.
– WTM-type Body : S45c alloy.
| Product No |
Rated Torque (N.m) |
Max. Torque (N.m) |
Max.Rotational Frequency (min-1) |
Moment of lnertia (kg.㎡) |
Error of Eeccentricity (mm) |
Error of Angularity (°) |
Error of Shaft End-Play (mm) |
| WTM-01C/CK/K | 30 | 60 | 11000 | 1.7 x 10-4 | 0.15 | 1° | ±0.6 |
| WTM-03C/CK/K | 40 | 80 | 10700 | 2.7 x 10-4 | 0.15 | 1° | ±0.6 |
| WTM-05C/CK/K | 95 | 190 | 9300 | 5.5 x 10-4 | 0.20 | 1° | ±0.8 |
| WTM-10C/CK/K | 140 | 280 | 8400 | 9.7 x 10-4 | 0.20 | 1° | ±1.0 |
| WTM-20C/CK/K | 225 | 450 | 6700 | 3.0 x 10-3 | 0.3 | 1° | ±1.2 |
| WTM-40C/CK/K | 400 | 800 | 5900 | 5.3 x 10-3 | 0.4 | 1° | ±1.4 |
