Characteristic:
It adopts a thin platform with high rigidity structure and integrated motor electronic control connection; a modular structure that combines cross linear guide rails, roller bearings and ball guide screws is installed on the four corner planes between the base and the workbench. The load cell is used to bear the force, achieving an ultra-thin structure. Its characteristics are as follows:
-Corresponds to large workpieces
By installing the required number of modules, larger sizes can also be accommodated.
-Ultra- thin, lightweight and stable
Because of the XYθ module, a thin, light and stable mechanism without a middle seat is achieved.
-Hollow structure
The central part of the workbench and base has a larger space and can be used as an optical inspection device.
-Load load unit
The central part adopts a patented load-bearing unit to bear the force, achieving the realization of small and high load.
-High rigidity and high precision
The cross linear guide rails and roller bearings that make up the module are preloaded and matched with precision-grade ball guide screws.
The rod is a high-precision, high-rigidity structure.

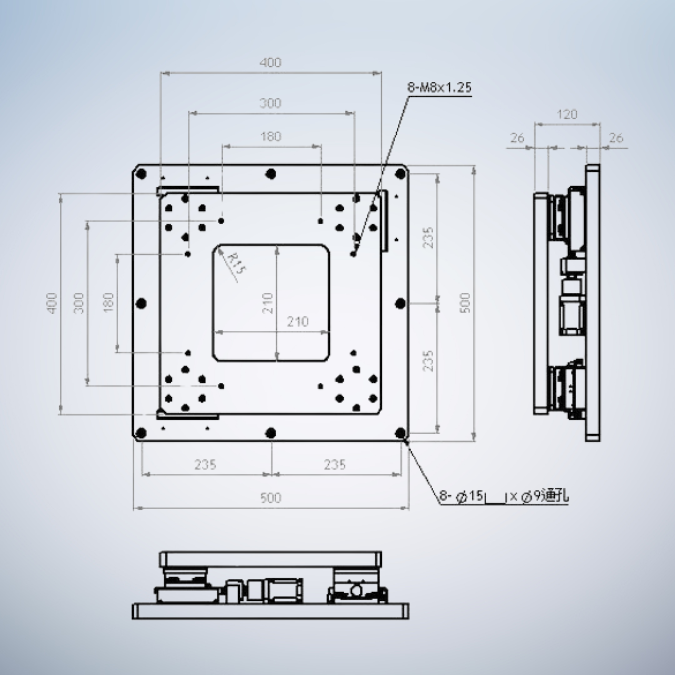

| Product name | Countertop size (mm) |
Moving stroke (mm) |
Dynamic load (kgf) |
Static load (kgf) |
Repeated positioning accuracy (μm) |
Parallel accuracy (μm) |
Screw lead (mm) |
Body weight (kg) |
Body material | surface treatment |
| TRX-400A-C1 | 400 × 400 | ±10 × ±10 × 2.5° | 50 | 100 | ±1 | 50 | 2 | 39 | Aluminum alloy | black chrome treatment |
| TRX-400A-C5 | 400 × 400 | ±10 × ±10 × 2.5° | 50 | 100 | ±5 | 50 | 2 | 39 | Aluminum alloy | black chrome treatment |
