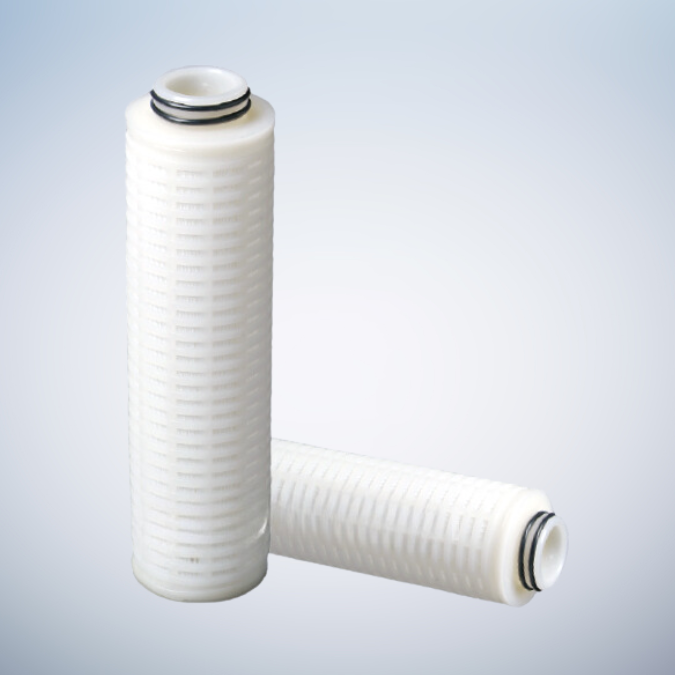

Cobetter AET, APTF series filter cartridges are composed of PTFE membrane and fluoroplastic core, support and seal material, making it all-teflon, and especially suitable for the filtration of strong chemical corrosion at high temperature.
Applications
- Hydrofluoric acid, Nitric acid, Sulfuric acid, Hydrochloric acid and other acids filtration
- Various kinds of high temperature gas filtration over 100°C
- Chloroform, Dimethyl, Isopropyl alcohol and other aggressive solvents filtration
- Not suitable for strong alkali filtration
- Not resistant to steam sterilization
Specifications
Chemical Compatibility
| Medium | Concentration(%) | APTF | AET | |||||
| 20°C | 60°C | 90°C | 20°C | 60°C | 90°C | |||
| Acid | Hydrochloric acid | 37 | + | + | + | + | + | + |
| Sulfuric acid | 96 | + | 0 | – | + | + | + | |
| >97 | – | – | – | + | 0 | 0 | ||
| Nitric acid | 65 | + | + | + | + | + | + | |
| Phosphoric acid | 86 | + | + | + | + | + | + | |
| Hydrofluoric acid | 40 | + | + | + | + | + | + | |
| Bases | Ammonium hydroxide | – | 0 | – | – | 0 | 0 | 0 |
| Sodium hydroxide | pH＜12 | + | + | + | + | + | + | |
| pH≥12 | – | – | – | 0 | 0 | 0 | ||
| Amine | – | 0 | 0 | – | + | 0 | – | |
| Salt | General | – | + | + | + | + | + | + |
| Chloryl salt (NaC10) | – | 0 | 0 | – | + | 0 | 0 | |
| Solvent | Aromatics compound | + | 0 | 0 | + | 0 | – | |
| Aliphatic compound | + | + | + | + | 0 | – | ||
| Ketone, Lipid | 0 | 0 | – | + | 0 | – | ||
| Alcohols(Ethyl alcohol) | + | 0 | 0 | + | + | 0 | ||
| Chlorinated | + | 0 | 0 | + | 0 | 0 | ||
| Dimethylformamide(DMF/DMAC) | – | – | – | + | 0 | 0 | ||
| Halogen Gas/Gas | Fluorine | – | – | – | 0 | – | – | |
| Chlorine | 0 | 0 | 0 | + | 0 | 0 | ||
| Bromine | + | + | + | + | 0 | 0 | ||
| Ozone | 0 | – | – | + | + | + | ||
| Other | Hydraulic Oil (sky diol special hydraulic working oil) | + | + | + | + | + | 0 | |
| Mineral oil | + | + | + | + | + | + | ||
| Alkali metals(melted or dissolved） | – | – | – | – | – | – | ||
“+” Resistant “0” Limted Resistant “-” Not Recommended
Ordering Information
| Outer Diameter | Type | Wettability | Removal Rating | End Cap | Nominal Length | Seal Material | Industry |
| 68mm | AET | — Hydrophobic | 0010 0.1µm | DTF D222/Fin | 10 10 inch | P FEP/PFA encapsulated O-rings | C |
| APTF | | Hydrophilic | 0022 0.22µm | DTC D222/Flat | 20 20 inch | P | ||
| 0045 0.45µm | SF 226/Fin | 30 30 inch | F | ||||
| 0500 5.0µm | SC 226/Flat | 40 40 inch |
* Example: AET-0010DTF10PC (APTF, Hydrophobic, 0.01µm，D222/Fin, 10 inch, FEP/PFA encapsulated O-rings, Industrial)
