Assembling style: MCFA, MCGB, MCGD, MCGJ, MCG3, MCGS, MCDA, MCSH, MCSS, MCSF, MCRA, MCJA, MCJQ, MCJT, MCKB, MCKC, MCHA, MCHB, MCHC, MSB*, MSL*.
| Wiring method | 2 wire, 3 wire |
|---|---|
| Switching logic | SPST normally open, Solid state output, normally open |
| Switch type | Reed switch, NPN current, NPN current sinking, PNP current sourcing |
| Operating voltage | 5~220V DC/AC, 10~28V DC, 5~30V DC |
| Switching current | 50mA, 80mA, 200mA (max.) |
| Switching rating | 10W, 1.5W, 2W, 6W (max.) (※1) |
| Current consumption | 6mA@24V DC, 10mA@24V DC, 12mA@24V DC (max.) (※5) |
| Voltage drop | 3.5V, 4V, 0.5V, 1.5V (max.) (※5) |
| Leakage current | 0.01mA, 0.1mA, 1mA (max.) (※5) |
| Indicator | Red LED, Green LED (※6) |
| Cable | φ2.8,2C,PU, φ3.0,3C,PU |
| Temperature range | －10~+70℃ (No freezing) |
| Shock | 30G, 50G (※2) |
| Vibration | 9G (※3) |
| Enclosure classification | IEC 60529 IP67 |

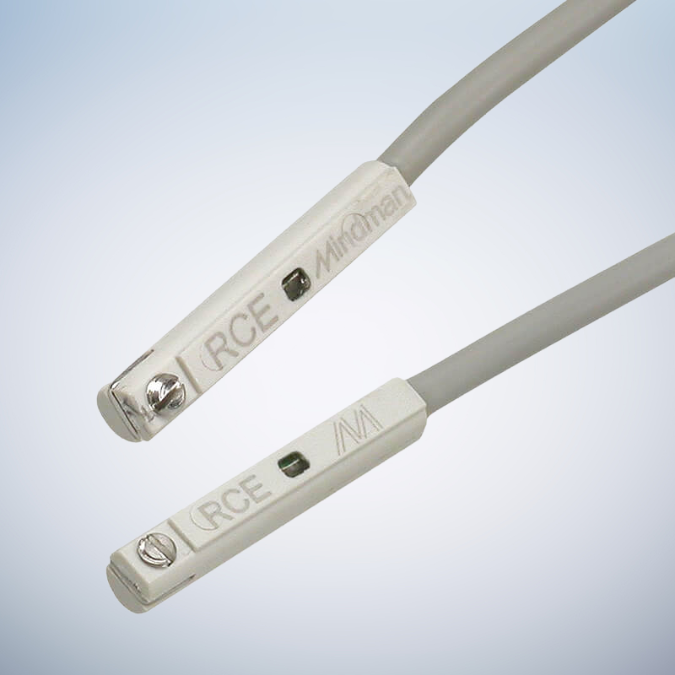

| Protection circuit | 1 (RCE), 3,4 (RDE,RNEE,RPE,RPEE), 2,3,4 (RDE-D) (※4) |
| Weight | 20g (2m cable) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur. ※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time. ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) / X.Y.Z. 3 directions / 1 hour each time. ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. ※5. It bases on conditions of voltage 24V DC, ambient temp. 25°C and cable 2M length. Voltage drop increases in pace with cable length. ※6. Red LED: unstable sensing range; Green LED: stable sensing range. |
