Characteristic:

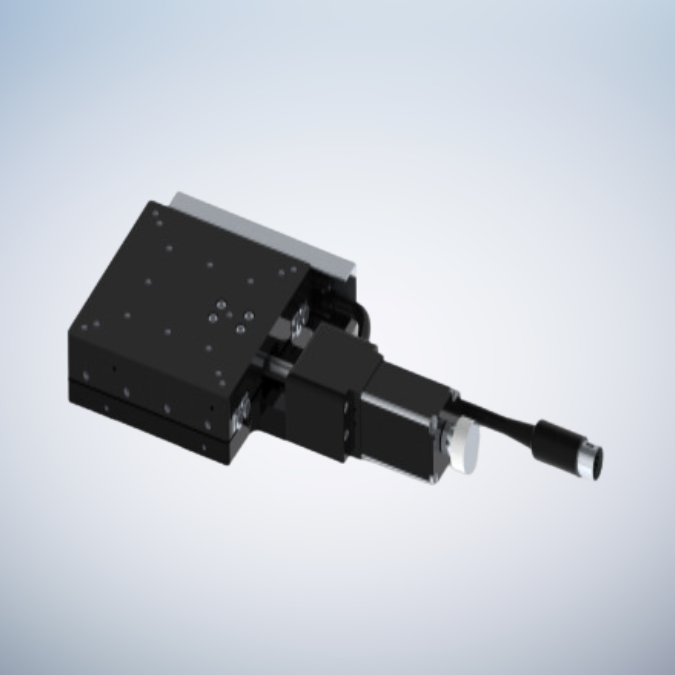

It adopts a thin platform with high rigidity crossed linear guide structure and integrated motor electronic control connection ; module
Optimized structural design, multi-axis free combination, achieving high rigidity and high precision modular structural units.
Its characteristics are as follows :
-Corresponding to multi-axial working requirements
By installing modules with the required number of axes, it can be freely adapted to various work applications .
-Mechatronic design
The motor, sensing element, connecting wire set, integrated design, anti-interference, easy and convenient subsequent maintenance .
-Ultra- thin, lightweight and stable
Because it uses VR roller modules and aerospace aluminum body, it achieves a thin, light and stable mechanism .
-High rigidity and high precision
Preload is applied to the cross linear guide rails that make up the module, and it is equipped with precision-grade ball guide screws . It is a high-precision
High strength and high rigidity structure .
-High stability, low vibration, low noise
The rotary table is cleverly designed and has an integrated structure, equipped with precision-grade worm gears and worm components.
, showing the operating characteristics of high precision, high stability, low vibration and low noise.
| motor lead A |
motor lead A- |
motor lead B |
motor lead B- |
open | cwls output | ccwls output | open | Power input (DC24V) |
ORG output | Power input (DC 0 V) |
F.G |
| Motor wire A / green | Motor wire A- / black | Motor wire B / red | Motor wire A / blue | – | Sensor substrate orange | Sensor substrate yellow | – | Sensor substrate brown | Sensor substrate gray | Sensor substrate purple | green ground wire white |
